Dry Wall Partitions System

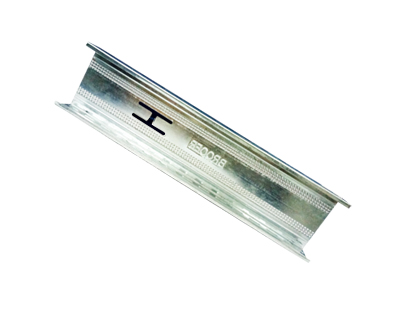

Brooer dry wall partition system is a metal partition system consisting of studs, ceiling and floor tracks. Brooer Stud & Track partitions are lightweight, non-loadbearing and quickly assembled on site. They provide cost effective partitions suitable for all types of commercial, Recreational and Industrial building as well as residential Development.
When combined together they form a framework which is designed to accept gypsum wallboard in single and double thickness. Brooer Stud and Track is available in several widths and when the gypsum board is fitted it
provides a solid wall. Studs can also be joined together to from a box when additional strength is required for the finished drywall partition.
Brooer Stud and Track Partitions weight much less than traditional partition of a comparable thickness, therefor effectively saving in structural design. The section also allows for the inclusion of service during construction. Our Stud & Track partitioning is fully compatible our ceiling section furring sections. Studs have a knurled face to assist straight screw penetration when fixing the wallboard with drywall screws; this allows the contractor to complete drywalls with the minimum amount of time and effort. Brooer Metal industries Stud and Track metal partition system can be used as solid walls in domestic and commercial buildings.
The quality and strength of all Stud and Track components and accessories is guaranteed by our manufacturing method. All stud, ceiling and floor tracks have been tested or assessed for fire resistance levels to BS 476 or E-119

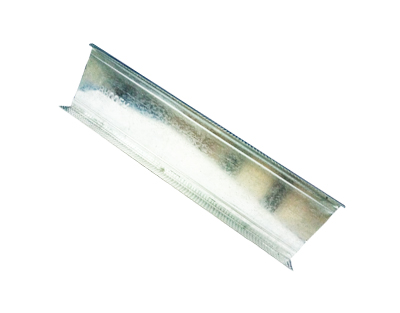

Fixing Ceiling and Floor Track
Floor & Ceiling Track must be securely fixed with a Raw of Fixings, at 600mm max center. If the concrete or Screeded floor is new, consideration should be given to the installation of damp proof membrane between the floor surface and the track section. When width of finished wall is important and heights in excess of 3600mm are required, two studs can be interlocked to make a box section.
50mm Stud 2 Layers of board max. Height 4200mm
70mm Stud 2 Layers of board max. Height 4800mm
Similarly, two Xtrawide Studs formed into a box can provide wall height in access of 7200mm
146mm Xtrawide Stud 2 Layers of board max Height 10500 mm.
When studs are boxed it is important that only one thickness of stud should be within the floor and ceiling track. Studs should be cut so that one fits into floor track and stops at ceiling track while the other fits into ceiling track and stop at top of floor track.
Electrical conducts and pipes can be easily accommodated up to a maximum diameter of 25 mm with the wall cavity. For heavy fixtures such as bathroom and sanitary fixings, additional support my be required.
Door openings-The designers should consider thickness tolerance of the partition types in relation to the proposed door frame detail .a standard door frame is formed by locating full height studs on each of the openings. The head is formed from a section of track fixed to studs on each side. Where additional provision is required to support heavy door sets, the studs can be sleeved with track section of appropriate gauge.
